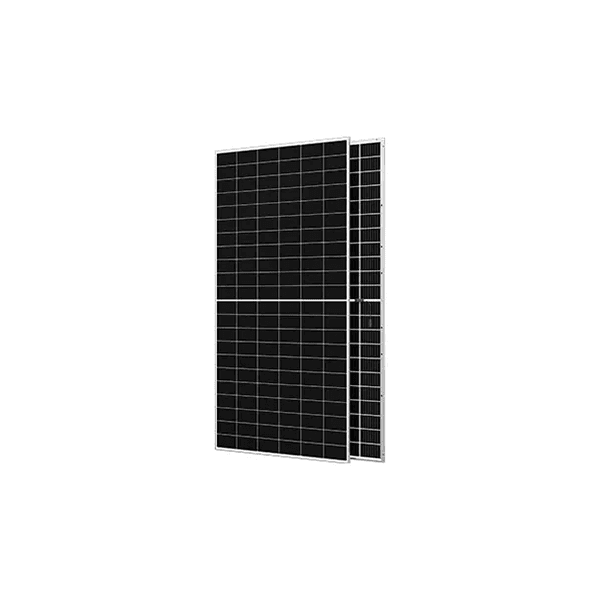

AIKO SP-AIKO-A650-GRH66Dw-BFL 650W N-Type ABC Solar Panel
Brand: AIKO
● In stock — ready to deliver
650W N-Type ABC Solar Panel with advanced All Back Contact cell technology
24.06% Module Efficiency for high-performance solar energy generation
Bifacial Dual-Glass Solar Module with up to 700W Pmax under BNPI conditions
1500V DC Maximum System Voltage with 30A maximum series fuse rating
5400Pa Front & 2400Pa Rear Load Capacity for reliable outdoor durability
15 years product warranty and 30 years performance warranty
- Official manufacturer warranty on this product
- Delivery available across Bangladesh
- Installation & after-sale support available
Product details
AIKO 650W N-Type ABC Solar Panel Price in Bangladesh
The AIKO 650W Solar Panel is a high-performance N-type ABC bifacial solar module designed for residential, commercial, and large-scale solar power systems. With a powerful 650W output and up to 24.06% module efficiency, it delivers excellent energy generation while making better use of available installation space. Its bifacial design can capture additional sunlight from the rear side, helping improve overall energy yield when installed under suitable conditions. The advanced N-type ABC technology also provides reliable performance and long-term durability. If you are looking for a high-output solar panel for a new or upgraded solar system in Bangladesh, the AIKO 650W Solar Panel is a practical choice. You can buy the AIKO 650W Solar Panel from Cyber Energy BD for reliable solar power solutions.
AIKO SP-AIKO-A650-GRH66Dw-BFL 650W Solar Panel Full Specification
Parameter | Value |
|---|---|
General Specifications | |
Brand | AIKO Solar |
Model | AIKO-A650-GRH66Dw |
Series | Stellar 1N+66 |
Product Type | Bifacial Dual-Glass Solar Module |
Cell Technology | N-type ABC (All Back Contact) |
No. of Cells | 132 (6×22) |
Electrical Characteristics (STC: AM1.5 1000W/m² 25°C) | |
Maximum Power (Pmax) | 650W |
Open Circuit Voltage (Voc) | 49.30V |
Short Circuit Current (Isc) | 16.62A |
Voltage at Maximum Power (Vmp) | 42.00V |
Current at Maximum Power (Imp) | 15.48A |
Module Efficiency | 24.06% |
Power Tolerance | 0 ~ +3% |
Electrical Characteristics (BNPI: AM1.5, front 1000W/m², rear 135W/m², 25°C) | |
Maximum Power (Pmax) | 700W |
Open Circuit Voltage (Voc) | 49.30V |
Short Circuit Current (Isc) | 17.76A |
Voltage at Maximum Power (Vmp) | 42.00V |
Current at Maximum Power (Imp) | 16.67A |
Mechanical Data | |
Dimensions (L × W × H) | 2382 × 1134 × 30 mm |
Weight | 32.5 kg |
Glass | Dual glass, 2.0 + 2.0mm coated semi-tempered glass |
Frame | Anodized Aluminum Alloy |
Junction Box | IP68, 3 bypass diodes |
Connector Type | Stäubli MC4-EVO2 |
Cable Length | +1400mm, -1400mm |
Operating Parameters | |
Maximum System Voltage | 1500V DC (IEC) |
Maximum Series Fuse Rating | 30A |
Module Operating Temperature | -40°C ~ +85°C |
T98 Max | 70°C |
Temperature Coefficients | |
Temperature Coefficient of Isc | +0.05%/°C |
Temperature Coefficient of Voc | -0.22%/°C |
Temperature Coefficient of Pmax | -0.26%/°C |
Mechanical Loading | |
Front Side Maximum Static Loading (Snow) | 5400Pa |
Rear Side Maximum Static Loading (Wind) | 2400Pa |
Packaging | |
Pieces per Pallet | 36 |
Pieces per 40′ Container | 720 |
