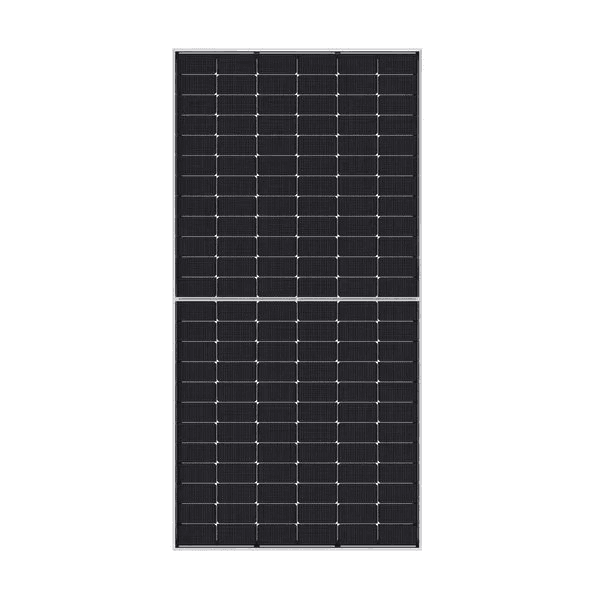

Jinko JKM590N-72HL4-BDV BFL 590W Tiger Neo N-Type TOPCon Solar Panel
Brand: Jinko
● In stock — ready to deliver
590W N-Type TOPCon Bifacial Solar Panel for residential, commercial, and industrial solar installations
22.87% Module Efficiency for efficient solar energy generation
Bifacial Technology with 80 ± 5% Bifaciality to capture sunlight from both sides and enhance energy production
1500V Maximum System Voltage for large-scale and high-performance solar PV systems
IP68-Rated Junction Box & Dual-Glass Design for reliable performance and durability
12-year product warranty; 30-year performance warranty
- Official manufacturer warranty on this product
- Delivery available across Bangladesh
- Installation & after-sale support available
Product details
Jinko 590W N-Type TOPCon Solar Panel Price in Bangladesh
The Jinko 590W Solar Panel features advanced N-Type TOPCon technology and a bifacial design to support efficient solar power generation. With its 590W power output, this Tiger Neo solar panel is suitable for residential, commercial, and industrial solar installations. Its bifacial technology can capture sunlight from both sides of the panel, helping increase energy production under suitable installation conditions. Buy the Jinko 590W Solar Panel in Bangladesh from Cyber Energy BD for a reliable and high-performance solar energy solution.
Jinko JKM590N-72HL4-BDV BFL 590W Solar Panel Full Specification
Parameter | Value (STC) |
|---|---|
Module Type | JKM590N-72HL4-BDV |
Peak Power (Pmax) | 590 Wp |
Module Efficiency | 22.87% |
Power Tolerance | 0~+3% |
Voltage at Max Power (Vmp) | 44.57 V |
Current at Max Power (Imp) | 13.24 A |
Open Circuit Voltage (Voc) | 53.64 V |
Short Circuit Current (Isc) | 14.07 A |
Max System Voltage | 1500 V (DC) |
Operating Temperature | -40℃ to +85℃ |
Cell Type | N-type Mono-crystalline |
Number of Cells | 144 (6x24) |
Dimensions (L x W x T) | 2278 × 1134 × 30 mm |
Weight | 31.8 kg |
Front Glass | 2.0 mm, Anti-Reflection Coating, Heat Strengthened Glass |
Rear Glass | 2.0 mm, Heat Strengthened Glass |
Frame | Anodized Aluminium Alloy |
Junction Box | IP68 Rated |
Cables | TUV 1x4.0mm², 400mm (including connector) |
Connector | MC4 Compatible |
Bifaciality | 80 ± 5% |
Pmax Temperature Coefficient | -0.29 %/℃ |
Voc Temperature Coefficient | -0.24 %/℃ |
Isc Temperature Coefficient | +0.048 %/℃ |
