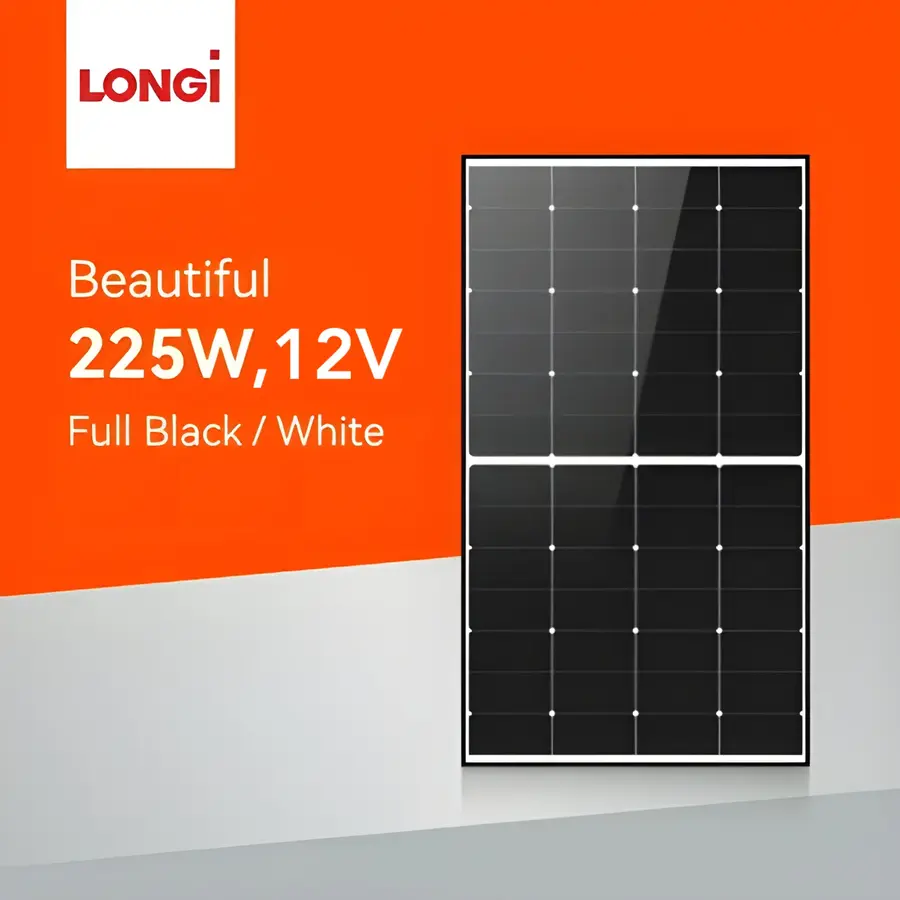

LONGi LR5-28HTH-225M 225W Horizon Monocrystalline Solar Panel

Module Type

LR5-28HTH-225M

Cell Type

Monocrystalline PERC, Half-Cut

Number of Cells

36 (equivalent to 72 half-cells)

Maximum Power (Pmax)

225 W

Module Efficiency

21.0%

Open Circuit Voltage (Voc)

22.5 V

Short Circuit Current (Isc)

12.8 A

Maximum Power Voltage (Vmp)

18.5 V

Maximum Power Current (Imp)

12.16 A

Maximum System Voltage

1000 V DC

Max Series Fuse Rating

20 A

Dimensions (L x W x T)

1580 mm x 808 mm x 35 mm

Weight

15.0 kg

Front Glass

3.2 mm tempered glass with anti-reflective coating

Frame

Anodized aluminum alloy

Junction Box

IP68 rated, 3 bypass diodes

Output Cables

4.0 mm² (0.006 in²) , 300 mm (11.8 in) length, MC4 compatible connectors

Operating Temperature

-40°C to +85°C

Pmax Temperature Coefficient

-0.35 %/°C

Voc Temperature Coefficient

-0.27 %/°C

Isc Temperature Coefficient

+0.048 %/°C
